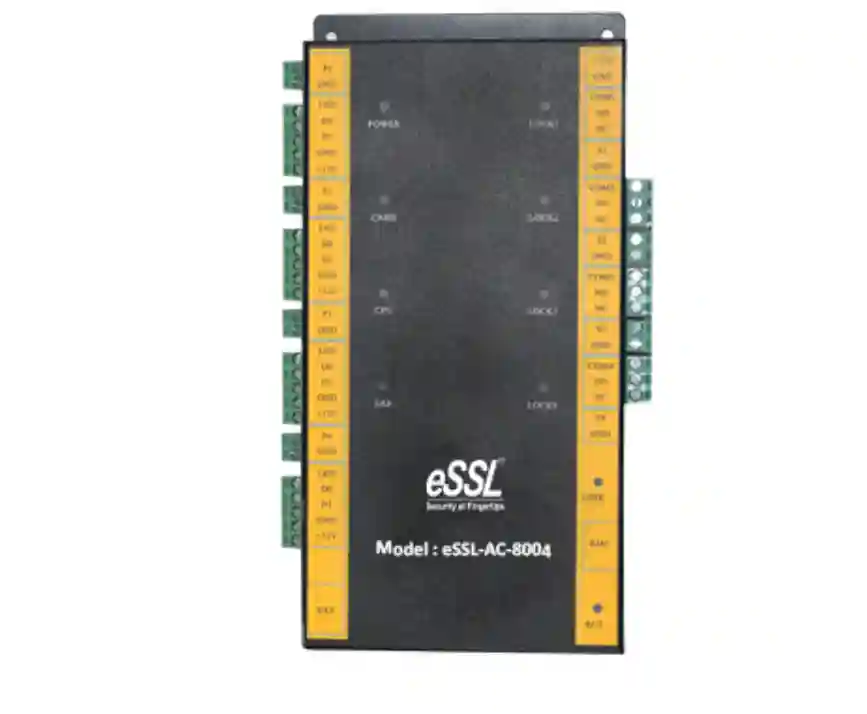

eSSL-Access-8004 Multidoor Access Control – 4 Door

The eSSL-Access-8004 is a multi-door access control system designed for organizations that require secure, efficient, and centralized management of multiple entry and exit points. Designed to control up to four independent doors through a single unit, it is an ideal solution for large offices, industrial sites, academic institutions, residential buildings, and other facilities that depend on streamlined, multi-point access management. The controller supports standard Wiegand-based card or biometric readers, allowing users to integrate various types of authentication devices depending on their security needs. With the ability to store tens of thousands of user credentials and event logs, the eSSL-Access-8004 provides…

Brands:

Description

Features:
Card Capacity : 20,000,
Event buffer : 1,00,000,
Communication : TCP/IP 10M/100M adaptive,
Function Description : Control 4 doors, enter via cards swiping and exit via buttons ,
PCB board size : 21.9 * 12.2 * 3.4cm.



Technical Specifications

  • Card Capacity : 20,000
  • Event buffer : 1,00,000
  • Communication : TCP/IP 10M/100M adaptive
  • Function Description : Control 4 doors, enter via cards swiping and exit via buttons
  • PCB board size : 21.9 * 12.2 * 3.4cm
  • Controller case size : 273*228*65mm
  • Power supply : 12V DC 4-7A
  • Power consumption of circuit board : < 200mA
  • Reader input format : Wiegand 26/34
  • Card Reader supported : 4
  • Door control output : 4
  • Delay time for unlocking : 1-600 seconds(adjustable)
  • Operation Temperature : -40 °C – 70°C
  • Operation Humidity : 10-90 % RH, No Condensation
  • 256 time Zones, 256 access levels
  • Anti-passback function
  • Interlock function
  • Multi-Card Opening function, Remote door opening
  • Real-Time monitoring via software Power interruption protection measure : High Speed Memory, Records never lose
  • Max Distance between Controllers : TCP/IP communication
  • Fire and alarm linkage : Optional

Software and Database Supported

  • eSSL Professional Door Control Software
  • Database Type:- MS Access / MS SQL1
