Complete Video Intercom Kit for Villas and Houses

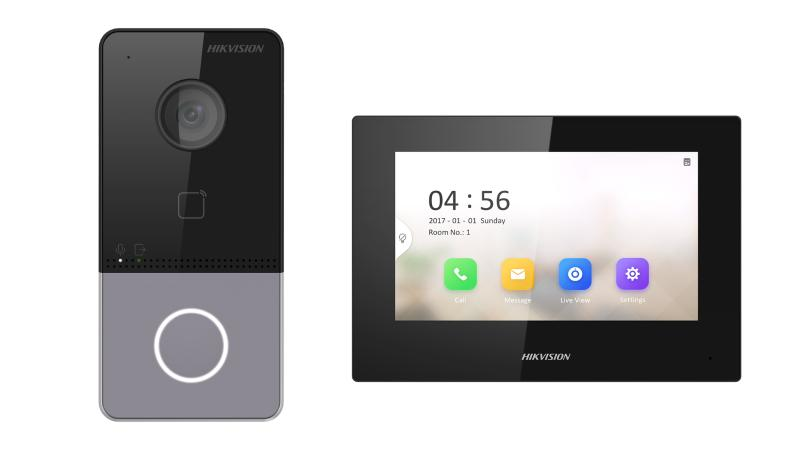

The DS-KIS605-P(C) is supplied as a complete network video intercom solution for residential applications.
Package Includes
- DS-KV6113-WPE1(C) × 1 – Outdoor door station
- DS-KH6320-LE1(B) × 1 – Indoor video intercom station
- Power supply unit (PSU) × 2
- Power adapters included
The single call button on the outdoor station makes visitor calling simple and straightforward.
2MP HD Camera with Night Vision
The outdoor door station features a 2MP HD camera for monitoring visitors at the entrance.
Its low-illumination IR supplement mode provides night vision up to approximately 3 metres, helping maintain visibility in low-light conditions.
The camera also supports:
- True WDR
- Backlight compensation
- Digital noise reduction
- 131° horizontal field of view
- 78° vertical field of view
- H.264 video compression
The main stream supports up to 1080p at 30fps, while the sub-stream supports D1 at 25fps.
Clear Two-Way Audio Communication
The DS-KIS605-P(C) supports two-way audio communication between the outdoor door station and indoor monitor.
The door station includes a built-in omnidirectional microphone and loudspeaker. Noise suppression and echo cancellation help improve communication quality when speaking with visitors at the entrance.
The system uses G.711 U audio compression with a 64 Kbps audio compression rate.
IP Network Connectivity
The DS-KIS605-P(C) uses wired Ethernet networking and supports 10/100 Mbps Ethernet connectivity.
Supported network protocols include:
- TCP/IP
- RTSP
The door station supports standard PoE through IEEE 802.3af, allowing power and network connectivity to be provided through compatible network infrastructure.
A 12V DC power input is also supported.
Outdoor Door Station
The DS-KV6113-WPE1(C) door station is designed for outdoor installation and features a compact surface-mount design.
Its protection rating is IP65, helping protect the unit against dust and water exposure when properly installed.
The door station measures approximately:
138 mm × 65 mm × 27 mm
It also includes a tamper switch for additional protection against unauthorized interference.
Indoor Video Intercom Station
The package includes the DS-KH6320-LE1(B) indoor station, providing the resident with an indoor interface for communicating with visitors at the entrance.
The indoor station allows users to answer calls from the outdoor door station and communicate with visitors without having to go directly to the entrance.
This makes the system suitable for villas, private houses and other residential properties where convenient visitor communication is required.
Suitable for Residential Properties
The Hikvision DS-KIS605-P(C) can be used in a variety of residential applications, including:
- Villas
- Private houses
- Residential compounds
- Apartment entrances
- Gated residential properties
- Small residential buildings
For larger properties or projects requiring multiple entrances, additional Hikvision video intercom equipment can be selected according to the system design.
Durable Outdoor Operation
The outdoor door station is specified for operation between -40°C and 53°C (-40°F to 127.4°F) with a working humidity range of 10% to 95%.
The device has a power consumption of less than 10W, making it suitable for continuous residential operation when correctly powered and installed.
Hikvision DS-KIS605-P(C) Specifications
| Feature | Specification |
|---|---|
| Product Type | IP Video Intercom Network Bundle |
| Application | Villa / House |
| Outdoor Station | DS-KV6113-WPE1(C) |
| Indoor Station | DS-KH6320-LE1(B) |
| Camera | 2MP HD |
| Night Vision | IR up to 3m |
| Horizontal FOV | 131° |
| Vertical FOV | 78° |
| Video Compression | H.264 |
| Main Stream | 1080p @ 30fps |
| Sub Stream | D1 @ 25fps |
| Audio | Two-way communication |
| Microphone | Built-in omnidirectional |
| Audio Features | Noise suppression & echo cancellation |
| Network | 10/100 Mbps Ethernet |
| Network Protocol | TCP/IP, RTSP |
| PoE | IEEE 802.3af |
| Additional Power | 12V DC |
| Protection | IP65 |
| Installation | Surface mounting |
| Door Station Dimensions | 138 × 65 × 27 mm |
| Operating Temperature | -40°C to 53°C |
| Working Humidity | 10% to 95% |
| Door Station Power Consumption | Less than 10W |
Why Choose the DS-KIS605-P(C)?
The DS-KIS605-P(C) combines the essential components of an IP video intercom system into one convenient package. Its HD camera, night vision, two-way audio, and PoE connectivity make it suitable for residential entrance communication.
For villa and house owners looking for a Hikvision intercom system, this kit provides a practical way to see and communicate with visitors from indoors.
